Configure Invoice RFC Connections for SAP Connector

For customers who use Chrome River's SAP Connector, the following Type G (HTTPS External) Remote Function Call (RFC) connections are available for Chrome River INVOICE.

Be sure your system meets the prerequisites, then use the attributes below to configure individual Invoice RFC connections.

Prerequisites

  • SAP Cryptographic Library must be Version 8.4.38 or higher to be TLS1.2 ready.

  • SAP Basis must be configured to talk to TLS1.2; see SAP Note 510007 for instructions.

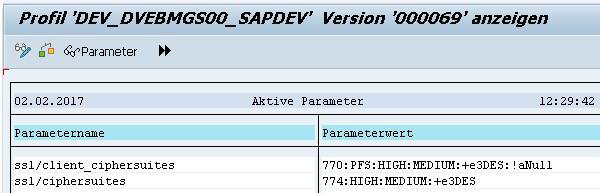

  • Perfect Forward Secrecy cipher suites are required; see SAP Note 2181733 for instructions.

  • TLS enhancement Server Name Indication (SNI) must be activated to enable Amazon Web Services communication.

Example

Vendor

Create an RFC connection with Type G named CHROME_RIVER_VENDOR.

Technical Settings

Path Prefix

/vendor-api/create-or-update

Target Host – Production

These paths are used for the project and live.

  • C1 Prod: service.chromeriver.com
  • C3 Prod: service.chromeriver.com
  • C5 Prod: service.chromeriver.com

Target Host – QA

These are created in SAP QA after go-live.

  • C1 QA: qa-service.chromeriver.com
  • C3 QA: qa-service.chromeriver.com
  • C5 QA: qa-service.chromeriver.com

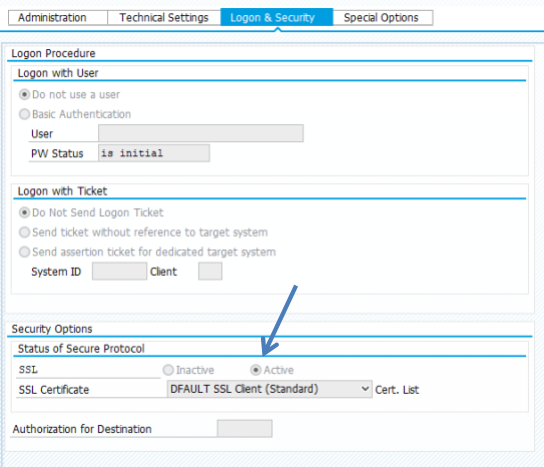

Log-On & Security

In the Security Options section, under Status of Secure Protocol, select the following settings:

  • SSL: Active
  • SSL Certificate: DFAULT SSL Client (Standard)

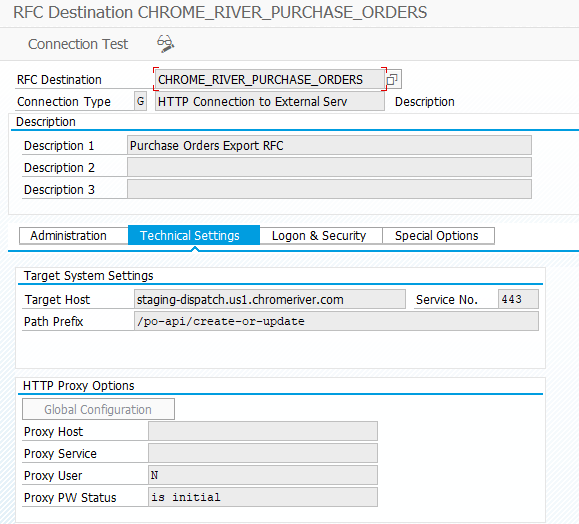

Purchase Order Create or Update

Create an RFC connection with Type G named CHROME_RIVER_PURCHASE_ORDERS.

Technical Settings

Path Prefix

/po-api/create-or-update

Target Host – Production

These paths are used for the project and live.

  • C1 Prod: service.chromeriver.com
  • C3 Prod: service.chromeriver.com
  • C5 Prod: service.chromeriver.com

Target Host – QA

These are created in SAP QA after go-live.

  • C1 QA: qa-service.chromeriver.com
  • C3 QA: qa-service.chromeriver.com
  • C5 QA: qa-service.chromeriver.com

Log-On & Security

In the Security Options section, under Status of Secure Protocol, select the following settings:

  • SSL: Active
  • SSL Certificate: DFAULT SSL Client (Standard)

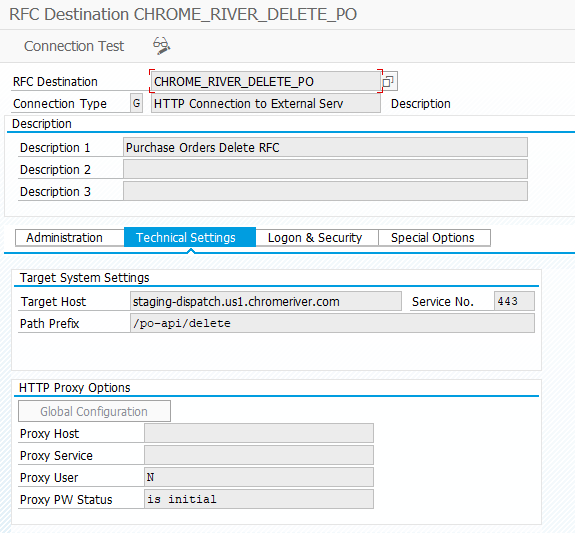

Purchase Order Delete

Create an RFC connection with Type G named CHROME_RIVER_DELETE_PO.

Technical Settings

Path Prefix

/po-api/delete

Target Host – Production

These paths are used for the project and live.

  • C1 Prod: service.chromeriver.com
  • C3 Prod: service.chromeriver.com
  • C5 Prod: service.chromeriver.com

Target Host – QA

These are created in SAP QA after go-live.

  • C1 QA: qa-service.chromeriver.com
  • C3 QA: qa-service.chromeriver.com
  • C5 QA: qa-service.chromeriver.com

Log-On & Security

In the Security Options section, under Status of Secure Protocol, select the following settings:

  • SSL: Active
  • SSL Certificate: DFAULT SSL Client (Standard)

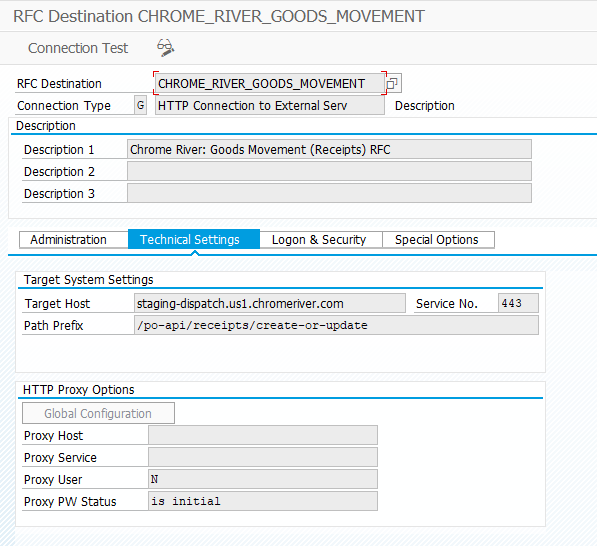

Goods Movement (Purchase Receipt)

Create an RFC connection with Type G named CHROME_RIVER_GOODS_MOVEMENT.

Technical Settings

Path Prefix

/po-api/receipts/create-or-update

Target Host – Production

These paths are used for the project and live.

  • C1 Prod: service.chromeriver.com
  • C3 Prod: service.chromeriver.com
  • C5 Prod: service.chromeriver.com

Target Host – QA

These are created in SAP QA after go-live.

  • C1 QA: qa-service.chromeriver.com
  • C3 QA: qa-service.chromeriver.com
  • C5 QA: qa-service.chromeriver.com

Log-On & Security

In the Security Options section, under Status of Secure Protocol, select the following settings:

  • SSL: Active
  • SSL Certificate: DFAULT SSL Client (Standard)

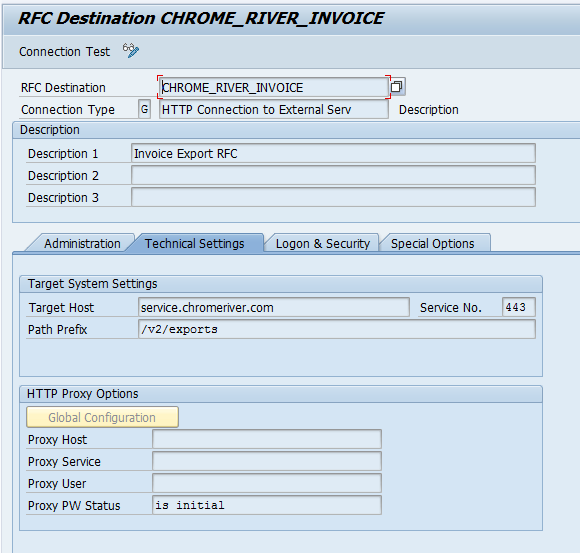

Invoice Export

Create an RFC connection with Type G named CHROME_RIVER_INVOICE.

Technical Settings

Path Prefix

/v2/exports

Target Host – Production

These paths are used for the project and live.

  • C1 Prod: service.chromeriver.com
  • C3 Prod: service.chromeriver.com
  • C5 Prod: service.chromeriver.com

Target Host – QA

These are created in SAP QA after go-live.

  • C1 QA: qa-service.chromeriver.com
  • C3 QA: qa-service.chromeriver.com
  • C5 QA: qa-service.chromeriver.com

Log-On & Security

In the Security Options section, under Status of Secure Protocol, select the following settings:

  • SSL: Active
  • SSL Certificate: DFAULT SSL Client (Standard)

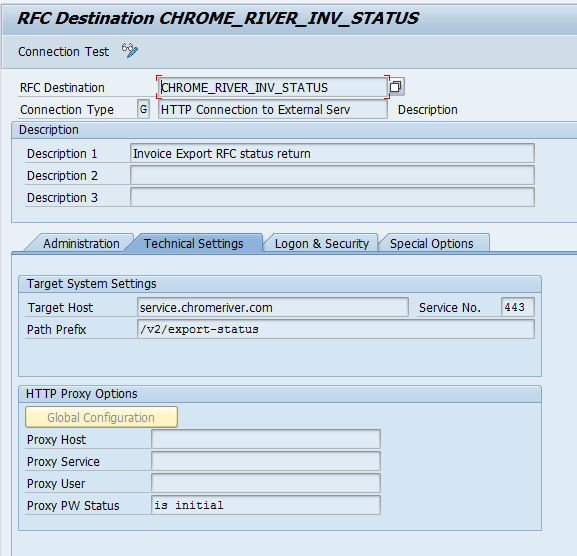

Invoice Export Status

Create an RFC connection with Type G named CHROME_RIVER_INV_STATUS.

Technical Settings

Path Prefix

/v2/export-status

Target Host – Production

These paths are used for the project and live.

  • C1 Prod: service.chromeriver.com
  • C3 Prod: service.chromeriver.com
  • C5 Prod: service.chromeriver.com

Target Host – QA

These are created in SAP QA after go-live.

  • C1 QA: qa-service.chromeriver.com
  • C3 QA: qa-service.chromeriver.com
  • C5 QA: qa-service.chromeriver.com

Log-On & Security

In the Security Options section, under Status of Secure Protocol, select the following settings:

  • SSL: Active
  • SSL Certificate: DFAULT SSL Client (Standard)

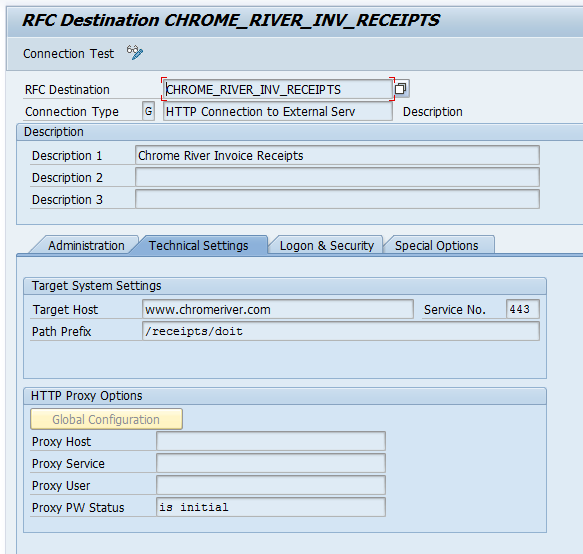

Invoice Receipts

Create an RFC connection with Type G named CHROME_RIVER_INV_RECEIPTS.

Technical Settings

Path Prefix

/receipts/doit

Target Host – Production

These paths are used for the project and live.

  • C1 Prod: https://www.chromeriver.com
  • C3 Prod: https://pt.eu1.chromeriver.com
  • C5 Prod: https://pt.ca1.chromeriver.com

Target Host – QA

These are created in SAP QA after go-live.

  • C1 QA: https://qa.chromeriver.com
  • C3 QA: https://qa-pt.eu1.chromeriver.com/receipts/doit
  • C5 QA: https://qa-pt.ca1.chromeriver.com/receipts/doit

Log-On & Security

In the Security Options section, under Status of Secure Protocol, select the following settings:

  • SSL: Active
  • SSL Certificate: DFAULT SSL Client (Standard)
